Large Enclosed 3D Printer
DB-700 LCD 3D Printer
- Independently developed VoxelPrint/FlashDL Print slicing software, easy to use,More powerful, support full gray anti-aliasing, functional and practical, print model more smooth.
- Using an array of 405nm wavelength ultraviolet light sources, a new parallel design，Light source irradiation more uniform, less heat performance more stable, with 4K bed white screen use, Achieve high precision printing
- AI computing power evolved again, super data + image processing capabilities,Models with complex structure and support are also easy to cope with
Dreambot3D Large Enclosed 3D Printer(DB-7000)
Dreambot3D large enclosed 3D printer (DB-700) efficiently prints with resin materials, integrating curing and printing into one process. With a print speed of 10-20mm per hour, it is well-suited for tasks requiring high precision and complexity.
- The device offers a maximum print size of 685(L) x 385(W) x 700(H) mm, allowing for larger and more extensive projects to be completed in a single run.
- The upgraded guide rail system reduces layer issues, resulting in smoother and more refined model surfaces, significantly minimizing post-processing work.
- A 405nm wavelength UV light source array ensures more uniform light exposure, enabling highly precise printing.
Additionally, we provide exceptional after-sales service to ensure a seamless customer experience.
| Printing Specification | Model | DB-700 |
| 3D printing size | 685*385*700mm | |
| Printing speed | 10-20mm/H | |
| Print layer thickness | 0.025-0.3mm | |
| Pixel resolution | 3840*2160 | |
| Screen size | 32 inches | |
| Technology type | UV LCD | |
| Curing wavelength | 405nm | |
| Environmental requirement | The working temp is 10-30° and the humidity is 20%-50% | |
| Device Specification | Machine size | 1100x680x1455 mm |
| Package size | 1110*685*1470 mm | |
| Curing box size | 800*500*280 mm | |
| Net weight (N.W) | 160 KG | |
| Gross weight (G.W) | 180 KG | |
| Overall power | 800 W | |
| Operation screen | 5.5-inch touch screen, support English and Chinese Language | |
| Operating system | Windows 7/8/10 (32/64 bits) | |
| File format | STL.OBJ.SCL | |
| Slicing software | CHITUBOX | |
| Input mode | SD card/U disk/USB | |
| Printing platform | Integrated formed aluminum alloy platform |
- Large printing size: 345*200*350mm
- 85μm light source: Imported light source, stable and long-lasting
- 4K monochrome screen for high-speed printing with 3840*2140 resolution
- High-speed printing: Faster printing speed
- Supports easy removal: Automatically generates a reasonable distribution
- No leveling required: Print without repeated leveling
- Ball screw: Precise and smooth sliding
- Integrated curing box: Curing size 800*500*280mm
- Lifetime technical support: Professional one-on-one guidance

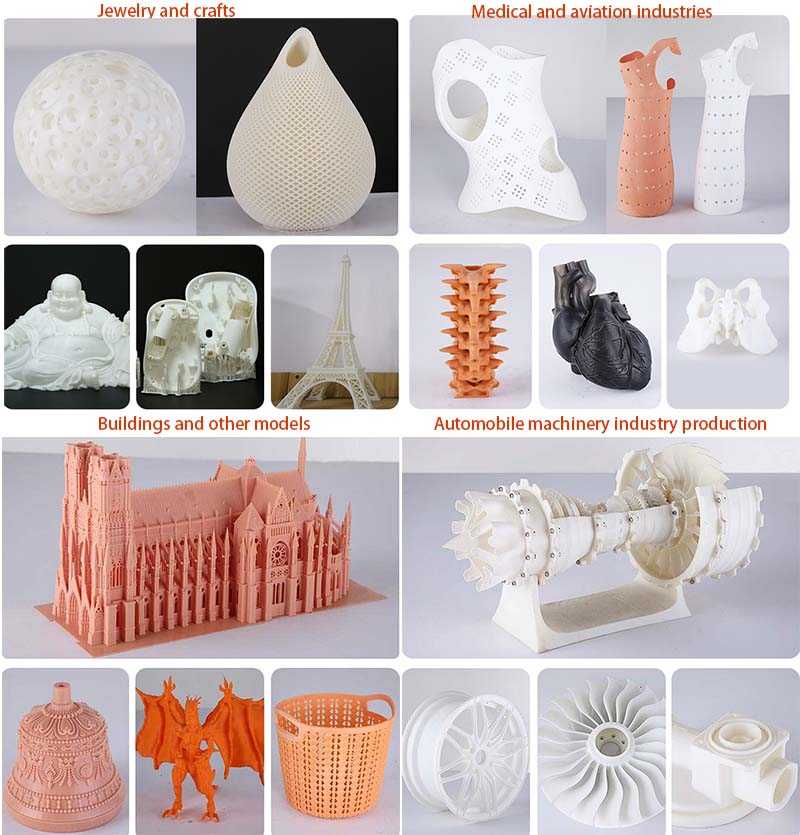

Application of Large Enclosed 3D Printer
Test your part
We provide sample testing service, allowing you to check the working quality of our 3D printer before placing an order
